Complete Guide to the 200mm Metal Hub Brake Castor Wheel

Moving heavy industrial loads, large facility waste containers, or machinery trolleys across busy commercial spaces demands equipment engineered for both structural strength and absolute stationary control. Sub-standard wheels can deform under heavy weight, bind during tight turns, or cause safety hazards by unexpectedly rolling when parked.

The 200mm Metal Hub Brake Castor Wheel is engineered specifically to address these challenges. Combining an ultra-durable cast metal hub with a wide 200mm wheel profile, a full 360-degree swivel mechanism, and an integrated locking brake system, this castor wheel provides heavy-duty load support, fluid steering, and reliable parking security for demanding commercial, industrial, and institutional setups.

This comprehensive guide breaks down everything you need to know about this metal hub brake castor wheel—including its mechanical construction, core performance advantages, real-world industry uses, mounting procedures, and maintenance protocols.

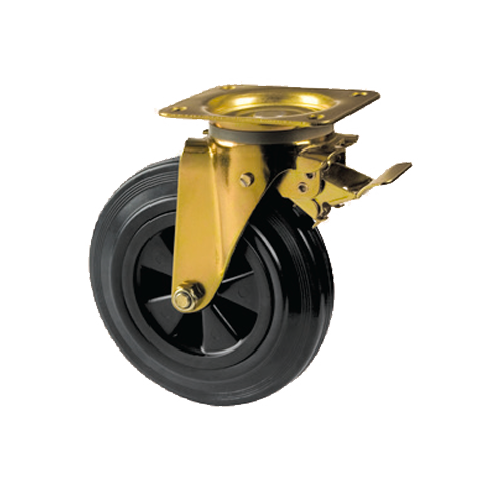

What Is a 200mm Metal Hub Brake Castor Wheel?

A castor wheel is a complete assembly unit designed to attach to the underside of movable equipment, such as trolleys, heavy industrial carts, mobile machinery, and waste bins.

Unlike fixed or unbraked castors, this metal hub brake castor offers both full 360-degree rotational movement and a built-in foot-operated locking mechanism. This allows operators to easily push heavy equipment across a facility and lock the wheel securely in place whenever stationary work, loading, or parking is required.

This castor combines three key engineering features:

• A Large 200mm Outer Wheel Diameter: Measuring 200 millimetres (about 8 inches) across, this wheel acts as a mechanical lever, making it substantially easier to roll heavy equipment over threshold bumps, expansion joints, and floor debris.

• A Heavy-Duty Metal Hub: The central wheel core is constructed from high-strength cast metal rather than polymer plastic. This delivers maximum structural rigidity, superior load-bearing capacity, and high resistance to physical shocks.

• Integrated Foot Brake & 360-Degree Swivel: Features heavy-duty ball-bearing raceways for full rotational steering, alongside a foot-actuated pedal brake that locks the wheel to prevent unwanted rolling.

Key Performance Features & Technical Advantages

Every aspect of the 200mm Metal Hub Brake Castor Wheel is built to maximize load capacity, reduce manual physical exertion, and ensure absolute safety during operation.

1. Large 200mm Wheel Diameter for Smooth Rolling

Smaller wheels (such as 100mm or 125mm castors) often catch on minor floor cracks or doorway tracks, abruptly stopping heavy equipment and causing operator strain.

• Superior Obstacle Clearance: The 200mm diameter bridges floor expansion joints, elevator threshold gaps, cable runners, and outdoor debris effortlessly.

• Reduced Physical Strain: Physics dictates that larger wheels require significantly less initial breakaway force to start rolling and less energy to maintain momentum, lowering operator fatigue and injury risks.

• High Shock Absorption: The larger circumference dampens physical vibration when moving across rough concrete or outdoor pavement, protecting sensitive equipment and cargo.

2. Heavy-Duty Metal Hub Construction

While plastic hubs excel in light-to-medium wet environments, solid metal hubs are essential when extreme load capacities, structural stiffness, and physical impact resistance are needed:

• Maximum Structural Rigidity: Cast metal hubs do not flex, deform, or warp under severe dynamic or static weight loads, keeping the central axle perfectly aligned.

• Impact & Crush Resistance: Metal hubs absorb severe physical impacts—such as accidental collisions with loading dock edges, curbs, or forklift tines—without cracking or shattering.

• High Weight Capacity: High structural density allows the wheel to carry heavy commercial and industrial loads that standard polymer wheels cannot support.

3. Integrated Foot-Operated Brake Mechanism

Mobility is vital, but unbraked equipment poses a severe workplace hazard when loading, unloading, or parked on inclines.

• Positive Locking Security: Pressing the brake pedal engages a locking mechanism that stops the wheel from rotating, keeping equipment safely anchored.

• Ergonomic Foot Activation: Operators can easily engage and disengage the locking pedal using standard work boots without bending down or using hand tools.

• Workplace Safety: Prevents accidental equipment drift on inclined surfaces, protecting workers, property, and surrounding inventory from damage.

4. Precision 360-Degree Swivel Dynamics

Steering heavy, fully loaded equipment through tight hallways and busy aisles requires fluid rotational freedom at the swivel head:

• Instant Directional Changes: The 360-degree swivel mechanism allows immediate turning without dragging or twisting the equipment frame.

• Double-Ball Bearing Raceways: Packed with heavy-duty ball bearings in the swivel top plate to distribute vertical and side forces evenly, preventing binding under heavy loads.

• Tight-Space Navigation: Swivel movement allows equipment to pivot on the spot or slide sideways into narrow storage bays.

Standard Castors vs. 200mm Metal Hub Brake Castors

Comparing standard castor wheels with the 200mm Metal Hub Brake Castor highlights the clear advantages in strength, safety, and control.

Tip: A standard commercial cart configuration pairs two swivel brake castors at the rear (steering end) with two plain swivel or fixed castors at the front for optimal steering control and parking stability.

Sector-By-Sector Application Guide

The structural strength and lockable design of the 200mm Metal Hub Brake Castor Wheel make it a practical choice across demanding industries:

1. Warehouses & Logistics Facilities

• Heavy Material Carts: Moves heavy bulk stock, automotive parts, and machinery across warehouse floors, locking securely during loading.

• Order-Picking Trolleys: Allows pickers to navigate narrow aisles smoothly and lock the cart when retrieving inventory from high shelving.

• Loading Dock Transport: Large 200mm wheels handle concrete floor expansion joints and dock leveler plates with ease.

2. Manufacturing & Industrial Plants

• Mobile Workbenches & Tool Stations: Relocates heavy tool cabinets and machinery stations right to assembly lines, then locks the brakes to create a rigid, non-moving workstation.

• Parts Delivery Racks: Transports heavy steel castings and sub-assemblies safely between production stages.

3. Waste Management & Municipal Operations

• Heavy Waste Bins & Tilt Trucks: Upgrades bulk metal trash bins and tilt trucks so they roll easily over outdoor asphalt, curbs, and drain grates, locking firmly during emptying or storage.

• Facility Maintenance Carts: Supports groundskeeping and repair teams hauling heavy concrete, piping, and building supplies.

4. Commercial Buildings & Shopping Centres

• Facility Service Trolleys: Transports heavy floor polishers, maintenance gear, and renovation supplies through large commercial properties.

• Back-of-House Freight Carts: Helps logistics staff move heavy crates, pallets, and store fixtures from delivery bays to retail floors.

5. Hospitals, Event Arenas & Institutions

• Heavy Equipment Cases: Mounts onto road cases, audio-visual enclosures, and stage lighting rigs for smooth transit across event arenas.

• Commercial Laundry Carts: Handles heavy bulk linen containers requiring stable, high-capacity transport and secure locking in service bays.

Step-by-Step Installation Guide

Proper installation ensures your 200mm Metal Hub Brake Castors operate safely and deliver maximum load performance. Follow these steps to mount or replace a castor wheel properly.

Step 1: Gather Tools and Equipment

Before starting, ensure you have:

• 200mm Metal Hub Brake Castor Wheels

• High-tensile steel bolts, flat washers, and locknuts (nyloc nuts are recommended to prevent loosening from vibration)

• Spanners or a socket wrench set

• Safety glasses and heavy-duty work gloves

Step 2: Prepare the Equipment Base

• Empty the cart, trolley, or bin completely so it is light and safe to tilt.

• Carefully flip the unit upside down or lay it on its side to access the mounting plate area.

• If replacing old castors, remove old hardware and clean the mounting surface with a wire brush or rag to remove dirt, grease, and rust.

Step 3: Align the Mounting Plate

• Position the castor top plate over the mounting holes on your equipment frame.

• Ensure the base plate sits completely flat against the frame. Never mount a heavy-duty castor onto a bent or uneven surface.

Step 4: Insert Fasteners Hand-Tight

• Insert a high-tensile bolt with a flat washer through each hole on the mounting plate.

• Attach a flat washer and locknut to the end of each bolt on the opposite side.

• Hand-tighten all four nuts first to verify correct alignment before fully torquing the bolts down.

Step 5: Torque Fasteners Securely

• Using a socket wrench and spanner, tighten each nut firmly.

• Tighten in a diagonal cross-pattern (opposite corners sequentially) to distribute pressure evenly across the mounting plate.

Step 6: Test Movement & Brake Function

• Turn the equipment right-side up onto its new wheels.

• Push the equipment to test rolling resistance and verify that the 360-degree swivel mechanism turns freely in all directions.

• Press the brake pedal down firmly to confirm it locks the wheel securely, then lift the pedal up to verify smooth release.

Preventative Maintenance & Care Protocol

Although built for heavy-duty commercial use, routine maintenance maximizes service life and maintains low rolling resistance.

Weekly Visual Inspection

• Inspect Tread: Check the wheel for embedded foreign objects like metal shavings, gravel, or glass fragments.

• Clear Tangled Debris: Remove wrapped hair, string, or plastic strapping from the axle immediately using a utility knife or pliers to prevent bearing binding.

Monthly Maintenance Checks

• Test Brake Engagement: Step on the brake pedal to verify immediate, firm locking action. Clear out dirt or dried mud build-up around the pedal pivot with a brush.

• Inspect Fasteners: Vibrations from rolling over floor seams can loosen hardware over time. Check mounting bolts with a wrench to ensure they remain tight.

• Check Swivel Raceways: Verify that the top swivel plate turns smoothly without grinding.

Lubrication & Cleaning Protocol

• Lubricate Swivel Head: Apply multi-purpose grease or lithium grease to the swivel ball bearing race periodically to ensure smooth 360-degree steering under heavy weight loads.

• Clean & Dry: Wash off heavy mud, grease, or dirt using water or commercial degreasers. Wipe down or dry metal components after cleaning to prevent surface rust on unpainted metal parts.

Troubleshooting Common Issues

Use this guide to quickly diagnose and resolve common castor wheel performance issues.

Issue 1: The Wheel Is Hard to Push or Dragging

• Likely Cause: String, hair, or plastic strapping is wrapped tightly around the axle bolt.

  • Solution: Cut away tangled debris using a utility knife or pliers.

• Likely Cause: Overloaded cart exceeding recommended weight capacity.

  • Solution: Reduce the weight load on the cart or install additional castors to distribute weight evenly.

Issue 2: The Swivel Mechanism Is Stiff or Jerky

• Likely Cause: Dirt, sand, or grit has entered the swivel ball race, or grease has dried out.

  • Solution: Flush out the swivel head with clean water or compressed air, then apply fresh multi-purpose grease.

• Likely Cause: Mounting plate is bolted onto an uneven surface, twisting the swivel housing.

  • Solution: Unbolt the castor and place flat metal shims under low corners so the mounting plate sits flat.

Issue 3: The Brake Pedal Will Not Lock or Stay Engaged

• Likely Cause: Debris, mud, or pebbles are trapped inside the brake shoe mechanism.

  • Solution: Clean out trapped debris using a stiff wire brush or high-pressure water spray.

• Likely Cause: The brake pedal lever was bent from severe physical impact.

  • Solution: Inspect pedal levers and straighten or replace distorted brake components.

Frequently Asked Questions (FAQs)

Q1: What is the main advantage of a metal hub over a plastic hub?

Metal hubs provide maximum structural strength, extreme weight capacity, and superior resistance to heavy impacts, crushing forces, and high side loads, making them ideal for heavy industrial applications.

Q2: What is the benefit of a 200mm wheel diameter?

A 200mm wheel provides a large circumference that gives operators greater mechanical advantage when pushing heavy loads. It rolls easily over floor cracks, door tracks, expansion joints, and outdoor gravel that would stop smaller wheels in their tracks.

Q3: How does the brake mechanism work?

The brake features an integrated foot pedal. Pressing down on the pedal locks the wheel's rotation, preventing the cart from rolling. Lifting the pedal releases the lock for smooth movement.

Q4: Can I mix brake castors and plain swivel castors on the same cart?

Yes, this is standard commercial practice. Fitting two swivel brake castors at the rear (steering handle end) and two standard swivel or fixed castors at the front provides excellent steering control and reliable parking security.

Q5: Can this metal hub brake castor be used outdoors?

Yes. The 200mm wheel diameter and heavy-duty metal hub handle outdoor asphalt, concrete aprons, and gravel paths easily. Routine cleaning and drying keep the metal components in optimal condition.

Q6: What types of equipment use a 200mm metal hub brake castor?

It is commonly used on heavy warehouse carts, industrial waste bins, tilt trucks, mobile workbenches, equipment cases, material handling racks, and heavy utility trolleys across commercial and manufacturing sectors.

Q7: Will this wheel leave dark scuff marks on clean indoor floors?

No. The wheel features a non-marking tread designed to protect indoor flooring, making it safe for high-gloss tile, epoxy, vinyl, and polished concrete surfaces.

Q8: How do I maintain the swivel bearing race?

Keep the swivel raceway clean of grit and dirt, and apply multi-purpose grease periodically to ensure smooth 360-degree rotation under heavy weight loads.

Q9: What hardware should I use to mount this castor?

Mount the top plate using high-tensile steel bolts, flat washers, and locking nuts (nyloc) suited to the hole dimensions on the mounting plate.

Q10: How do I remove tangled hair or string from the axle?

Use a utility knife, small blade, or pliers to slice through tangled threads or plastic strapping wrapped around the axle, then pull the debris clear to restore free wheel rotation.

Q11: Why is a brake castor better than using wheel chocks?

Built-in brake castors provide instant, foot-actuated parking security without carrying around loose wheel chocks, saving time and ensuring safety during loading and unloading.

Q12: Why is proper mounting plate alignment important?

Bolting a castor onto an uneven or bent frame twists the swivel housing, which binds the ball bearings and makes steering stiff. Using flat shims under low corners ensures smooth 360-degree rotation.
